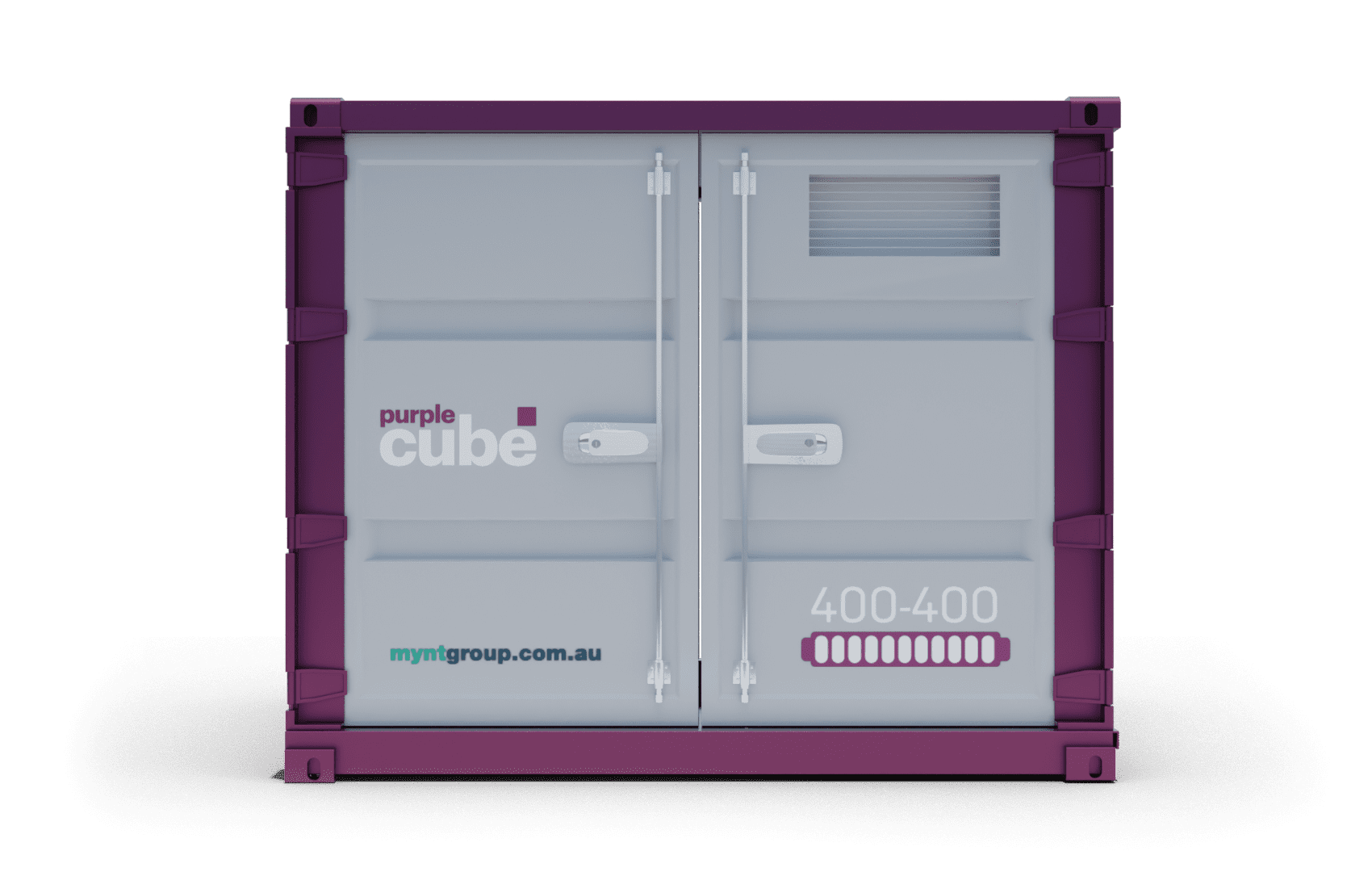

The Purple CUBE range of smart BESS units is designed to replace diesel generators above 75kva. The Purple CUBE Purple range can receive input power from a variety of sources either separately or concurrently, including solar, mains, diesel, wind and hydrogen. The Purple CUBE can also parallel so you can add or subtract capacity during the course of a project to optimise your carbon and budgetary requirements.
| Dimensions (L x W x H) | 2950 x 2300 x 2500 mm |
| Weight | 7500 kg |
| Protection class | IP54 |
| Corrosion protection | C3 (C5M) |
| Operating temperature | -20 to +50 ℃ |
| Humidity | 0-95% |
| Sound power level | <50 dB(A) |
| Nominal rated power | 376 kVA |
| Voltage | 415 VAC |
| Frequency | 50 Hz |
| Nominal AC current | 524 A |
| Max AC current(10s) | 870 A |
| Weight | 7500 kg |
| Cell chemistry | LiFePO4 |
| Nominal capacity | 376 kWh |
| Effective capacity | 338.4 kWh |
| Recharging time | 2h@188kW |
| Discharging time | 1h@338kW |
| DoD% (depth of discharge) | 90% |
| Lifetime (80% DoD) | 7000 Cycles @ 80% DoD |
| Battery management system | Automotive grade BMS |
| Temperature control | Liquid cooling / PI heating film |
| Control panel | Industrial-grade touch-enabled 10”HMI |
| Protection | Overload, Overheat, Short Circuit, Earth Fault |
| Remote generator start | Dry contact relay / MODBUS |
| Remote connectivity | |
| Remote automation | Modoken Capable |
